TPU vs PLA: When to Use Flexible Filament (And When to Avoid It)

TPU vs PLA: Quick Comparison

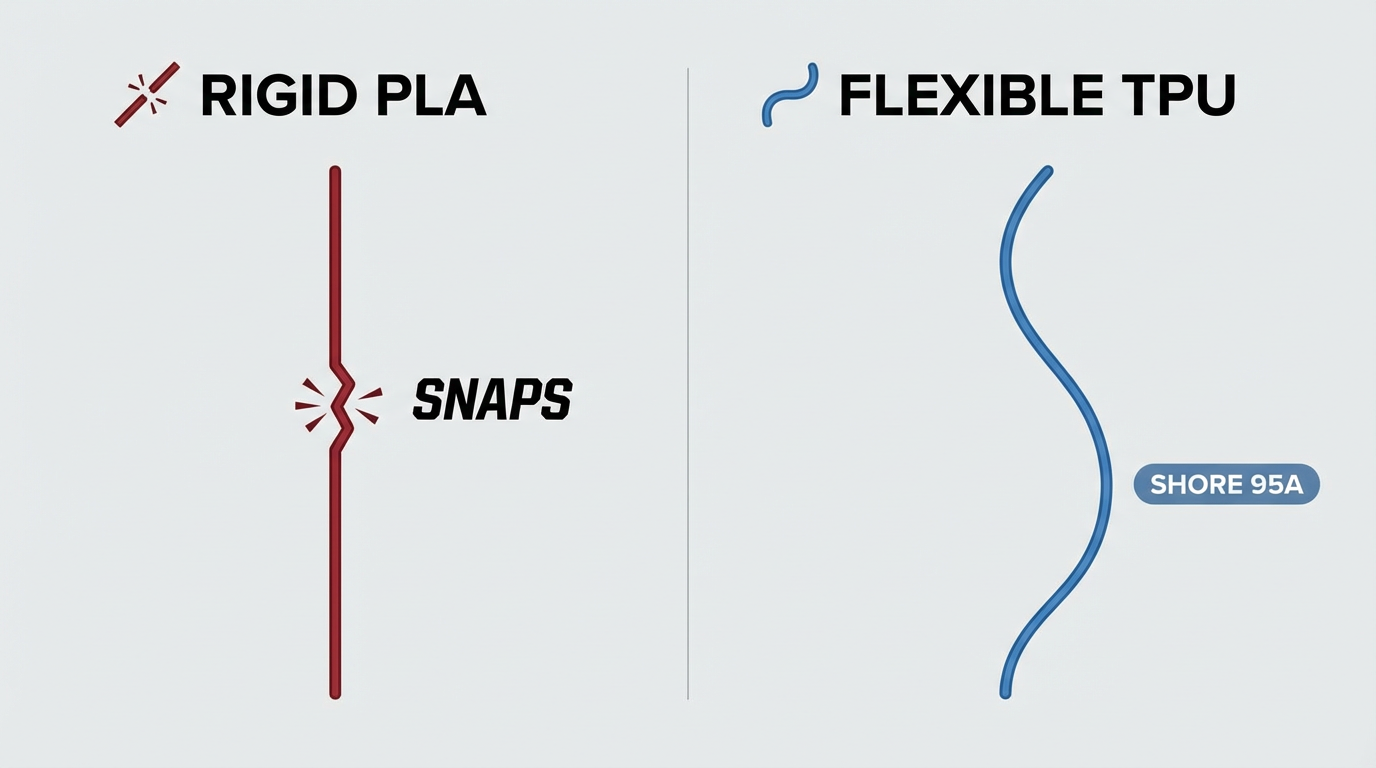

PLA is stiff, brittle, and easy to print. It snaps when overloaded and softens above 55°C. TPU stretches, absorbs shock, and returns to shape. Shore 95A TPU behaves like stiff rubber; 85A is softer. TPU prints slower, needs different retraction settings, and often benefits from direct drive. Both have distinct use cases.

When to Use TPU (Flexible Filament)

Use TPU when you need grip, shock absorption, watertight seals, or parts that bend without breaking. Here are practical use cases we’ve tested.

Phone Cases

TPU phone cases absorb drops and grip surfaces. In our tests, a 95A TPU case printed at 25 mm/s survived 20+ drops from desk height. PLA cases crack on the first impact. Print at 220–235°C, 0.2–0.3 mm layer height, 100% infill or 3–4 walls for durability.

Gaskets and Seals

TPU compresses and seals. Use it for lids, enclosures, or parts that need a watertight or airtight fit. 95A works for most gaskets; 85A for softer, more compliant seals. Print slow (15–20 mm/s) with retraction disabled to avoid gaps.

Wearables and Grips

Watch bands, wrist rests, tool grips, and cable management sleeves benefit from TPU’s elasticity. Parts conform to shapes and stay comfortable. Softer 85A suits wearables; 95A works for tool grips and bumpers.

Protective Bumpers

Camera lens caps, electronics cushions, and vibration dampers. TPU absorbs impact that PLA would transmit. Pair with PLA for hybrid designs: rigid structure + flexible interfaces.

When to Avoid TPU (Use PLA Instead)

Avoid TPU when you need dimensional accuracy, structural strength, fast print times, or fine details. PLA wins in these cases.

• Structural parts: Brackets, mounts, enclosures. PLA and PETG hold shape under load. TPU flexes.
• Precision fits: Parts that must slide, snap, or thread. TPU shrinks inconsistently and deforms under pressure.
• Speed matters: PLA prints 2–3× faster. A 4-hour PLA part can take 10+ hours in TPU.
• Beginner setups: Bowden printers struggle with soft TPU. Start with PLA until you’ve dialed basics.
• Heat exposure: Both soften, but PLA fails around 55°C. TPU holds up a bit better; PETG beats both for heat.

TPU vs PLA: Print Settings

PLA is forgiving. Nozzle 190–210°C, bed 55–60°C, speed 50–80 mm/s. Retraction 3–6 mm works on most printers. No special hardware needed.

TPU needs tuning. Nozzle 220–235°C, bed 50–60°C. Speed 15–30 mm/s for 95A; 10–20 mm/s for 85A. Disable retraction or use 1–2 mm max. Reduce flow 2–5% to curb oozing. Bowden tubes compress flexible filament; direct drive improves consistency. An all-metal hotend handles TPU temps and avoids PTFE degradation at 230°C+.

Print Difficulty: TPU vs PLA

PLA is the easiest filament. Beginners typically get good results with default profiles. Warping is rare, adhesion is straightforward, and failed prints are usually fixable by releveling or adjusting temps.

TPU is harder. You’ll deal with stringing, oozing, and inconsistent extrusion if settings are off. Bowden setups need patience: slow speeds, minimal retraction, and a wide enough tube. Direct drive simplifies things. In our experience, 95A TPU takes 2–3 test prints to dial in; 85A can take a week. See our nozzle unclog guide for when flexible filament causes jams.

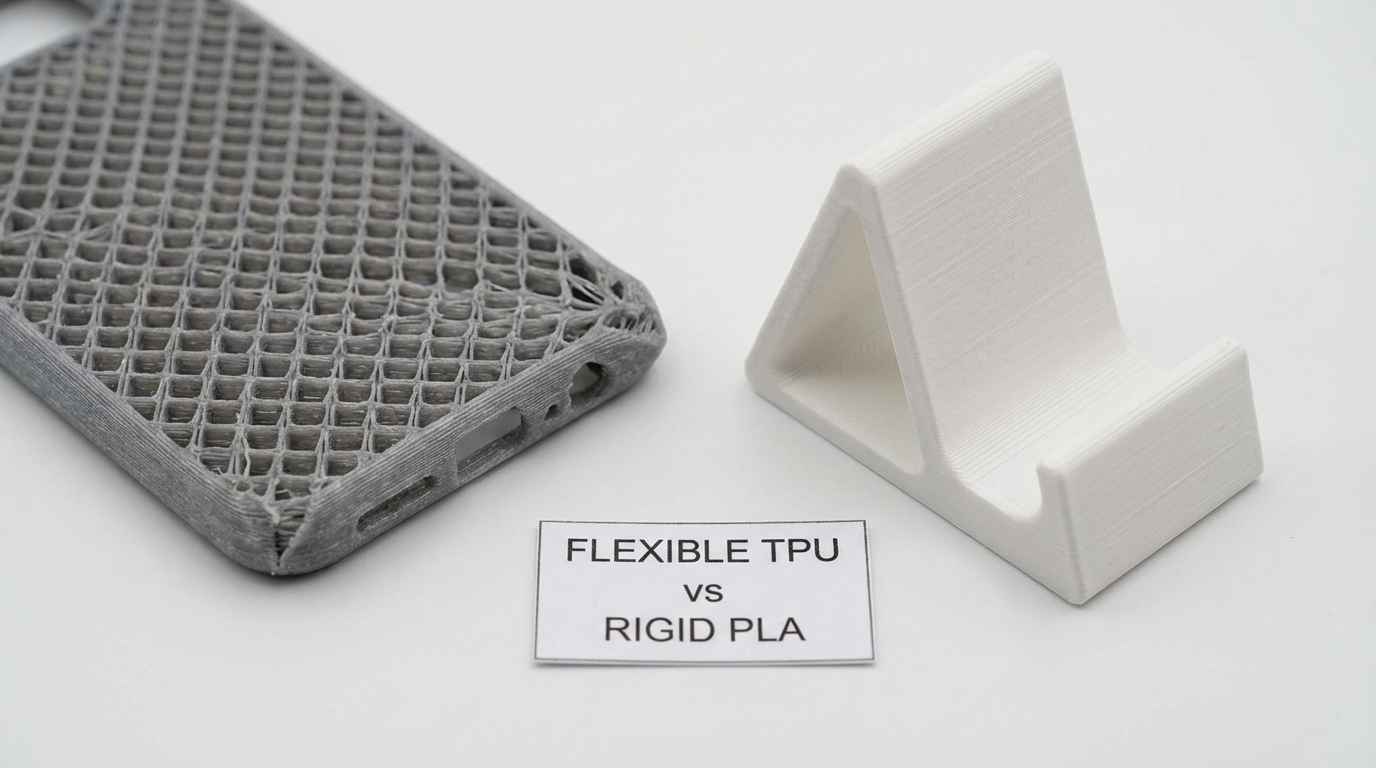

Practical Examples: PLA vs TPU

Real-world scenarios where the choice is clear.

1. Phone case: TPU. Absorbs drops, grips, flexible enough to install. PLA cracks.
2. Tool holder bracket: PLA. Needs rigidity to hold weight. TPU would sag.
3. Gasket for enclosure: TPU. Compresses to seal. PLA can’t form a seal.
4. Figurine or decorative model: PLA. Fine details, smooth finish, no flexibility needed.
5. Camera lens cap: TPU. Soft, won’t scratch glass. PLA risks damage.
6. Electronics enclosure: PLA or PETG. Rigid structure. Add TPU feet for vibration damping if needed.

Hybrid approach: print structure in PLA, interfaces in TPU. Example: PLA bracket with TPU feet. Our rigid vs flexible filament guide covers PLA, PETG, TPU, and TPE in one comparison.

Frequently Asked Questions

When should I use TPU instead of PLA?

Short answer: Use TPU when you need grip, shock absorption, watertight seals, or parts that bend without breaking.

Detailed: TPU wins for phone cases, gaskets, bumpers, wearables, cable sleeves, and protective caps. PLA wins for structural parts, prototypes, figurines, and anything that must hold exact dimensions.

Is TPU harder to print than PLA?

Short answer: Yes. TPU needs slower speeds, different retraction, and often direct drive.

Detailed: PLA prints at 50–80 mm/s with standard settings. TPU 95A runs at 15–30 mm/s. Retraction must be disabled or very low (1–2 mm). Bowden setups compress flexible filament; direct drive improves extrusion consistency.

Can I print TPU on a bowden printer?

Short answer: Yes for 95A TPU at 15–25 mm/s. Softer 85A and TPE often need direct drive.

Detailed: Firm 95A TPU works on bowden if you slow down, minimize retraction, and avoid sharp bends in the tube. 85A compresses more and benefits from direct drive for reliable results.

What is TPU 95A?

Short answer: TPU 95A is firmer flexible filament, easier to print than 85A.

Detailed: Shore A hardness: 95A feels like stiff rubber. 85A is softer, more like a tire. 95A tolerates bowden setups better. Start with 95A for phone cases and gaskets before trying softer grades.

What print temperature for TPU?

Short answer: 220–235°C nozzle, 50–60°C bed.

Detailed: Start at 225°C. Too cold causes poor layer adhesion. Too hot increases oozing and stringing. An all-metal hotend handles these temps without PTFE degradation.

When should I avoid TPU?

Short answer: Avoid TPU for structural parts, precision fits, and when speed matters.

Detailed: Use PLA for brackets, enclosures, mounts, and anything that must hold shape under load. TPU flexes. Also avoid TPU for tight tolerances—it shrinks and deforms more than PLA.

Do I need direct drive for TPU?

Short answer: Not for 95A TPU. Softer TPU and TPE benefit from direct drive.

Detailed: 95A TPU works on bowden at 15–25 mm/s. 85A and TPE compress in the tube and often need direct drive for consistent extrusion.

What is the best flexible filament for phone cases?

Short answer: TPU 95A. Good balance of flexibility and printability.

Detailed: 95A absorbs drops, grips surfaces, and prints reliably on most setups. 85A is softer but harder to print. High Speed TPU variants allow faster speeds on direct drive.

Summary

TPU wins for phone cases, gaskets, wearables, bumpers, and anything that needs grip or shock absorption. PLA wins for structural parts, prototypes, figurines, and when speed and ease matter. Use TPU when the part must flex; use PLA when it must stay rigid.

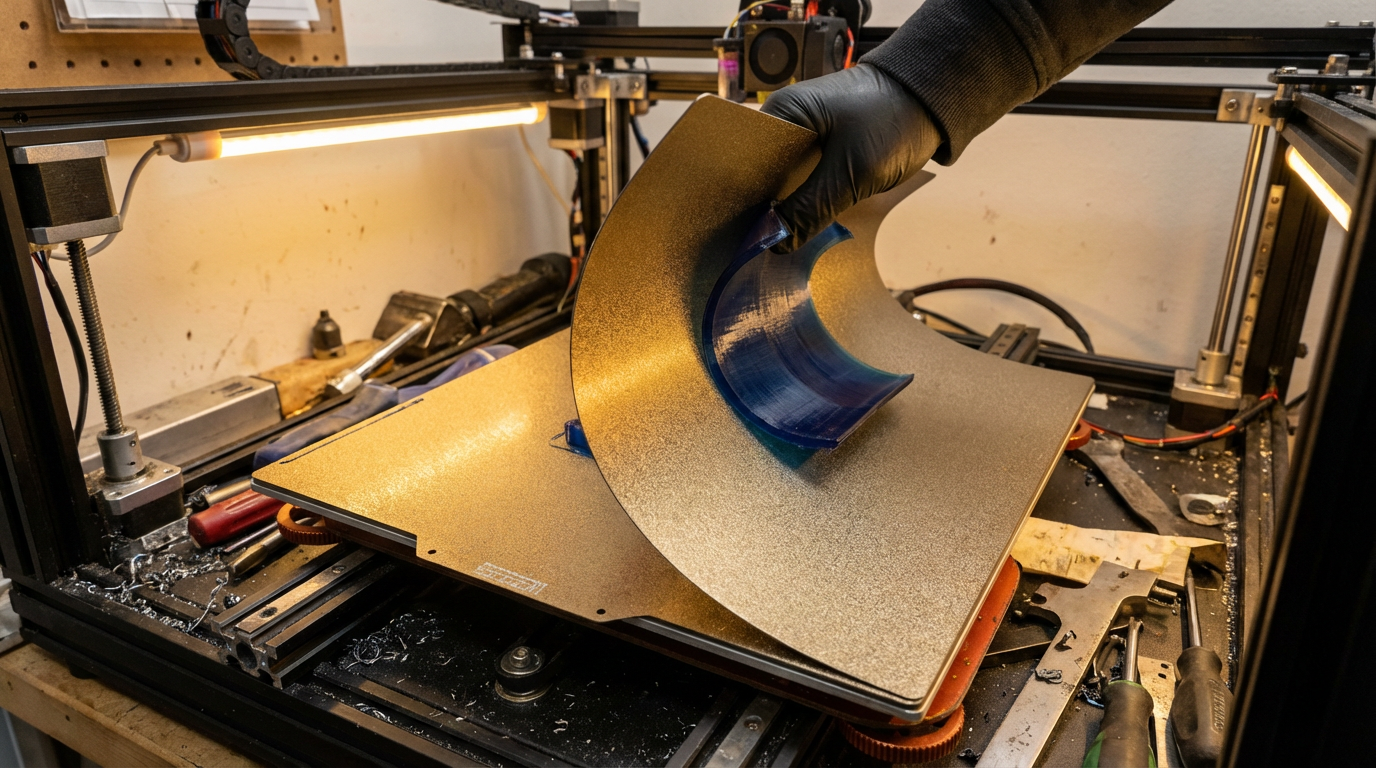

Start with PLA to learn the basics. Add TPU when you need flexibility—begin with 95A and a flexible build plate. Compare prices on our filament comparison tool. For broader material options, see rigid vs flexible filament and PLA+ vs PLA.
